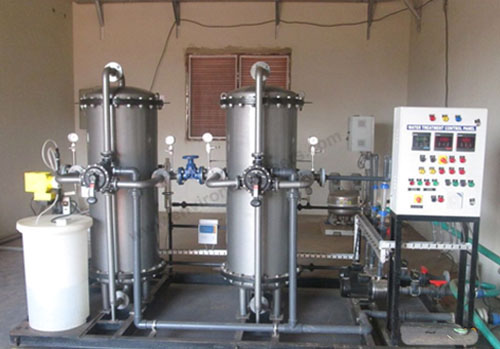

Thermax offer a wide range of filtration systems standardised on the basis of specific velocities for each type of filter. Filters are available with single 5-way valve operation & multiple valve operation depending on the flow rate & the application. Filters are available in MS (painted), FRP & HDPE construction.

Dual Media Filter consists of Sand and Anthracite as a filtering medium. Anthracite has a higher dirt-holding capacity and hence it can be operated at higher velocities. DMF can be used to filter out turbidity in the raw water from 50 to 100NTU.

Activated Carbon Filter is used for removal of Free Residual Chlorine, Colour, Odour and Oil in fewer quantities. Activated Charcoal is used as the media for the removal of above-said impurities. It works on Surface Absorption Principle.

Iron Removal Filter is used to remove the iron from water. IRF Consists of Manganese Dioxide Layer which works as a catalyst in converting Ferrous to Ferric which can be easily precipitated and Filtered Physically.

Filters can be of FRP, MSEP, MSRL Material of Construction

Capacity

EZ	DMF	ACF	IRF	GF
Flow Range (M3/Hr)	0.3 – 13	0.3 – 12	0.3 – 12	0.3 – 10
FXL	DMF	ACF	IRF	GF
Flow Range (M3/Hr)	0.3 – 13	0.3 – 12	0.3 – 12	0.3 – 12
VERSA	DMF	ACF	IRF	GF
Flow Range (M3/Hr)	10 – 200	10 – 200	7.5 - 200	10 - 200

Softening is a widely used technology for reducing hardness forming ions (Ca & Mg) which precipitate and scale at very low temperatures and pressures. Softening is a reversible ion exchange process wherein the hardness forming ions are exchanged with sodium ions present in the resin group.

WE offers a wide range of softening plants with versatility in flow, flexibility in resin quantities and ease in operation. Thermax is one of the largest manufacturers of the strong acid cation resin used in this process..

Softeners can be of FRP, MSEP, MSRL Material of Construction

Softener Range :

• 0.3 m3/ Hr to 20m3/hr and above

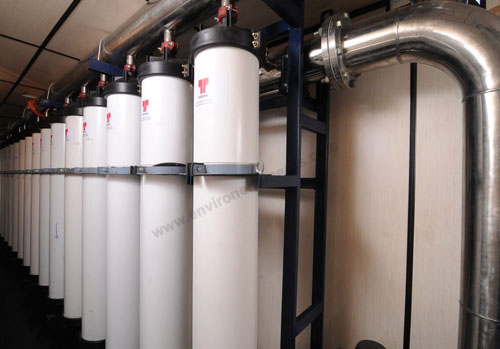

Membrane-based Water Treatment Technology

• Replaces conventional pre-treatment.
• The improved removal efficiency of SS, SDI, Viruses, Bacteria, Pathogens and other Micro-Organisms.
• Increases RO membrane and plant life if used in pre-treatment.
• Minimizes usage of pre-treatment chemicals, coagulants, and other filtration equipment
• Wide-ranging applications in seawater pre-treatment to RO Feed, Bacteria removal, Brine Juice Clarification, Colloidal Silica removal, Pre-Treatment to Boiler Feed Water, Sewage Water, Waste Water, etc.
• Standard module up to 80 m3/hr(skid mounted).

Clarifiers are the settling tanks used to separate solid particulates from liquids. Flocculation and Settling: In this stage, the Suspended matter in Colloidal form is removed. Small Suspended particles in the raw water are coagulated by using Polyelectrolyte and Coagulant at higher Ph. This is then passed through Tube settler where coagulated Suspended matter settles down and clear water flows up. Coagulated Suspended matter is taken out from Hopper Bottom of the Tube settler in the form of Thick Sludge. Clearwater is further treated in the Second Stage.

Standard Capacity

• 0-4, 4-8, 8-16, 16-24, 24-32, 32-40, 40-48, 48-64 m3/hr\

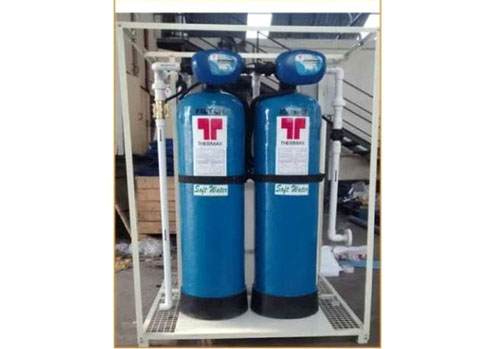

Capacity: 2000 LPH

• Removes Hardness to Commercial Zero Level.
• Automatic Operation/Smart plant.
• It can be installed in Hydro Booster or Directly Pump.
• Compact skid mounted.
